50mx100m Huge Trade Show Tent with Aluminum Frame for Sale

50mx100m Huge Trade Show Tent with Aluminum Frame for Sale

1. Introduction of Trade Show Tent
The clear span of the Huge Hall tent is 40m, 50m, 60m and the main profile size is 400X170X7/10mm. This tent is a modular structure that can be increased or decreased in bay distance of 5m according to the clients’ requirements.

The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6). The PVC covers use PVC-coated polyester textile and flame retardance which is based on the European standard DIN 4102b1, M2.

40x50m-big-tent

2. Application of Trade Show Tent
The tent attached is our 50mX80m are widely used as the party tent, wedding tent, exhibition tent, conference tent, festivals celebration tent, corporate events tent or other events.

3. Specification of Trade Show Tent (HH series)
Main frame profile size for BT series: 400X150X5mm
Wind load: 100km/h
Eave/Corner Connection: Hot-DIP galvanized
Minimum tent length: In order to reach the designed wind load and make sure the tent is safe, please set up the tent with the required minimum tent length.

4. Optional Accessories of Trade Show Tent
-Sidewalls with clear windows
-Ground anchors
-Weight plate
-Lining
-Glass wall system
-Glass door units
-ABS walling system
-Clear roof covers and sidewalls
-Flooring system
-Rain gutter system
-Hexagonal and octagonal end bays and high peak

Big Tent

5. Materials of Trade Show Tent
Fabric: Double PVC coated polyester fabric, 750-900g/sq. M, water proof, UV resistance, fire retardant according to standard NFPA701, CFM & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Connections: Hot-DIP galvanized

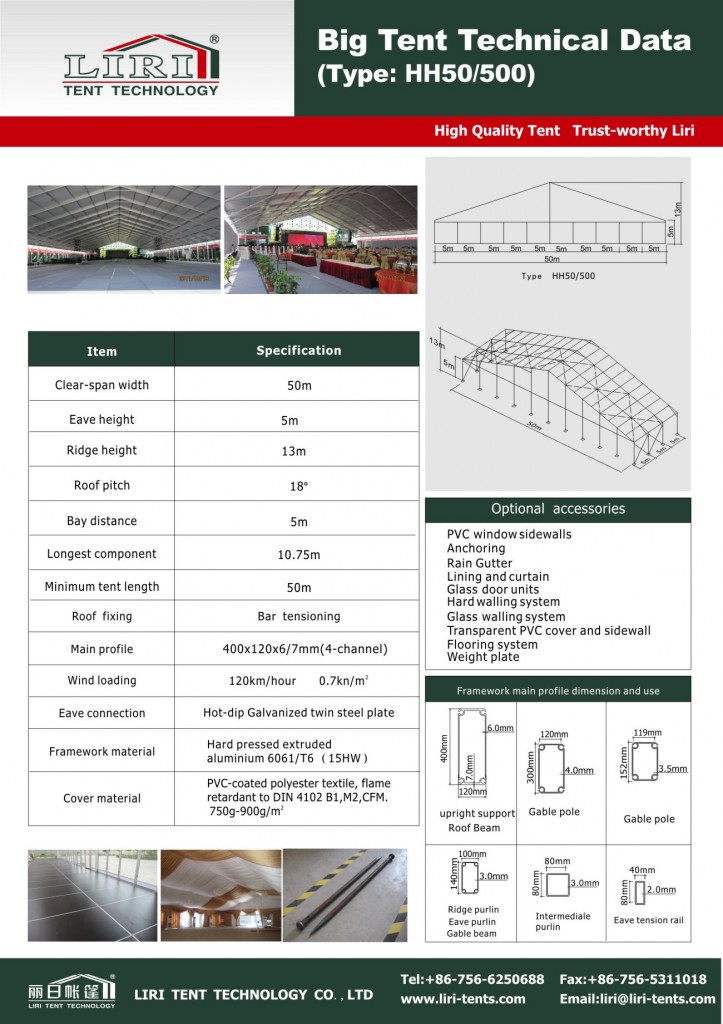

HH50X500

6. Colors available
White, red, yellow, blue, green, black, grey, transparent etc

7. Product certificates:
Fabric: Test reports for the fire retardant, standards: NFPA701, CFM & DIN4102 B1/M2
Structure safety: Certificates by the registered engineers in the U. S. A & Australia.

Guaranteeing quality but reducing cost by 16 years’ experience
Focusing on global PVC tents market and requirements.
Innovating hardware design for more trendy and convenient
In order to improve efficiency, suppliers of RAM material are neighbor.
100% inspection before exporting and 100% after sales service following.
On going creation and innovation can go beyond.

Model Clear span Length Bay Eave
height
Ridge height Longest component Minimum tent length
HH30/400 40m unlimited 5m 4m 11.5m 10.75m 25m
HH50/400 50m unlimited 5m 4m 13.0m 10.75m 40m
HH60/400 60m unlimited 5m 4m 14.6m  10.75m  40m
