Aluminum Frame Gazebo Tent 4m x 4m / Gazebo Tent 5×5 / 8×8 Gazebo

资源站8

Aluminum Frame Gazebo Tent 4m x 4m / Gazebo Tent 5×5 / 8×8 Gazebo

Product Description

    >> Specifications of gazebo tent 5×5

 Liri PAG Series:

Type Span Width Bay Distance Eave Height Ridge Height Main Profile
PAG 3m/9.8′ 3m/9.8′ 2.5m 4.3m  65x65x2.5mm(4-channel)
PAG 4m/13′ 4m/13′ 2.5m 4.8m 65x65x2.5mm(4-channel)
PAG 5m/16.4′ 5m/16.4′ 2.5m 5.43m 65x65x2.5mm(4-channel)
PAG 6m/19.7′ 6m/19.7′ 2.5m 5.92m 65x65x2.5mm(4-channel)
PAG 8m/26.2′ 8m/26.2′ 2.6m 5.36m 122x68x3mm(4-channel)
PAG 10m/32.8′ 10m/32.8′ 2.6m 6.38m 122x68x3mm(4-channel)
Pagoda tent can be used as a single unit or combined by a rain gutter to make a  larger space or a special structure style. Customized size is available.

pagoda tent (4)

  • Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
  • Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
  • Connector: strong hot-dip galvanized steel
  • Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
  • Wind load: max. 100km/h (can be reinforced)
  • Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
  • Easy to be assembled and dismantled, movable.
  • No pole inside, 100% available interior space.

    >> Fixing Methods of gazebo tent 5×5

fixing method

    >> Accessories of gazebo tent 5×5

  • Covers: colourful cover, transparent cover, inflatable roof cover
  • Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
  • Wooden Flooring System: VIP cassette flooring, simple cassette flooring
  • Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
  • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
  • Fixing Methods: ground anchors, weight plate, expandable bolts
  • Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
  • Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
pagoda tent (5)
Click Here for More Details: event furniture          tent air conditioner          tent flooring

    >> Applications of gazebo tent 5×5

cases-gazebo-01

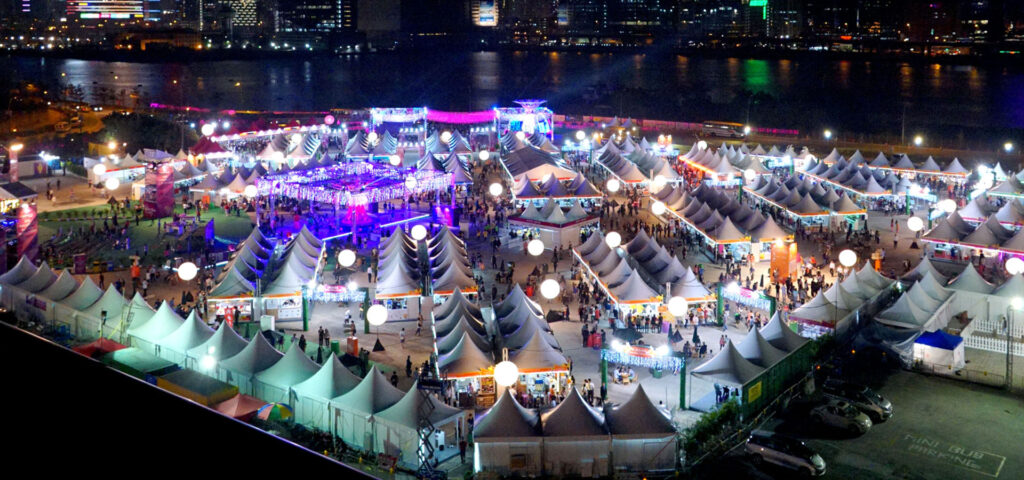

  • Widely used for Weddings, Events, Parties, Celebrations,Sports,Tradeshow, Warehouse,etc.

cases-gazebo-03

    >> Packaging of gazebo tent 5×5

  • aluminum frame packed in membrane film
  • hardware packed in solid carton box
  • roof and sidewall in professional PVC carry bag

packaging

    >> Certificate of gazebo tent 5×5

certifications

Liri Tent Series

full series banner

Tent Roof Type Span Width Bay Distance Eave Height
“A” Shape 3m~60m 3m/5m 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m
Domelike 3m~40m 3m/5m 2.6m/3m/3.23m/3.88m/3.92m
High Peak  3m~10m 3m/4m/5m/6m/8m/10m 2.5m/2.6m
Curve Shape 15m~40m 5m 3.87m/3.89m
Polygon 10m~60m 5m 4m
Cube Structure 10m~30m 5m 5m



Please note this is a general description.For exact tent type and size please feel free to contact us.





New Product — Liri HST Series: Click the picture for more details!

new product

Company Information

Liri Tent Technology (Zhuhai) Co., Ltd. was established in 1997. Our company is the first professional manufacturer who introduced European advanced tents technology into our own design. Our main products include Modular Aluminium Alloy Structure Tents, Clear Span Tent Structure and Aluminium Alloy Square Pagoda & Summer Gazebo.

company information -2



To form an integrated management system,Liri Tent introduced advanced ERP system in 2008 and barcode management system in 2013. Liri Tent is also the pioneer to apply CNC machines that achieved the automatic processing of aluminum.

company information -3





      LIRI TENT Successful Cases:

  • Kinds of New Style Tent for China Open
  • Canton Fair Exhibition Hall
  • 2011 Universiade Official Tent Supplier
  • 2010 Asian Games Exclusive Tent Supplier&Sponsor
  • Dior Event in Hong Kong
  • China Grand  Rally Sponsor
  • Hong Kong Wine and Dine Festival
  • ……

company information -1

FAQ

Q: Can you print our logos on tent?

  • Yes.Customized logos can be print on the tent fabric according to your requirements.

Q: Is that factory price?

  • Yes.We assure you all prices are based on factory.

Q: Does your tent be able to install repeatedly?

  • Our tents can be assembled and dismantled and repeatedly with small transportation size.The lifespan of aluminium framework can reach 15-20 years,and 5-8 years for PVC fabrics depending on different conditions of usage.

Q: What documents are available?

  • A full range documents including structural drawings,packing list,installation manual and relative certificates can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.

Q: What size tent is necessary for your special event?

  • A person must first determine tent usage. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person.If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.

Q: Has your tent product been certified?

  • Yes.Our tent product has passed the engineering tests and gained the America And Australia structural engineering certificates. Besides, the PVC fabric used for roof covers and sidewalls has passed the fire tests and gained the flame retardant certificates issued by America, Australia, New Zealand, and Britain.

Q: Is your tent strong and stable enough? How about the wind loading?

  • Yes.The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6) so our tent structure is safe and strong and can resist wind up to 100 km/hr.

Q: How long is the warranty period?

  • Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly because of any damage due to quality problem.
