Dome Tent For Sport Event

Small dome  tent for IAAF event&Internet + Expo

    1.Specifications of Small dome tent

Type Span Width Bay Distance Eave Height Ridge Height Mainprofile
DMPT 3m/9.8′ 3m/9.8′ 2.6m 3.0m 71x36x2.5mm(4-channel)
DMPT 4m/13′ 3m/9.8′ 2.6m 3.2m 71x36x2.5mm(4-channel)
DMPT 5m/16.4′ 3m/9.8′ 2.6m 3.4m 71x36x2.5mm(4-channel)
DMPT 6m/19.7′ 3m/9.8′ 2.6m 3.6m 71x36x2.5mm(4-channel)
DMPT 8m/26.2′ 3m/9.8′ 2.6m 4.0m 71x36x2.5mm(4-channel)

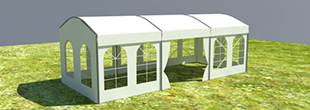

DMPT 3D

NPT6M

2.Features and materials of Small dome tent

  • Frame struss: hard pressed extruded aluminium 6061 /T6(15HW) which can last more than 20 years.
  • Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
  • Connector: strong hot-dip galvanized steel

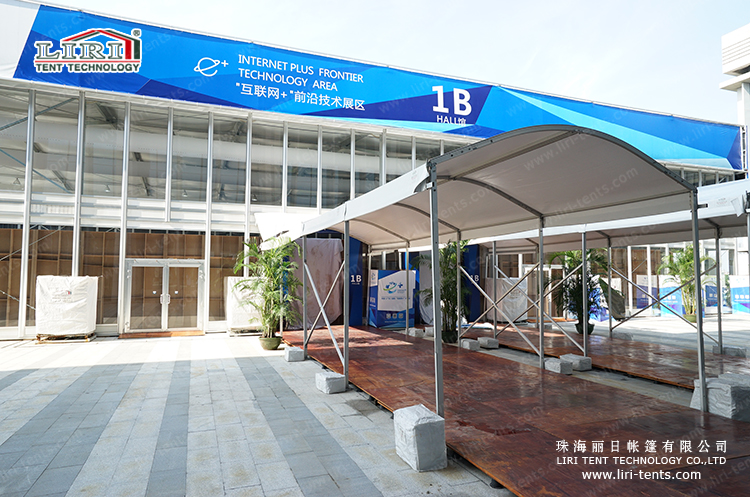

LIRI Dome Aisle Tent for Internet Plus Exposition China Guangdong 2015 (1)

  • Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
  • Wind load: max. 100km/h (can be reinforced)
  • Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
  • Easy to be assembled and dismantled, movable.
  • No pole inside, 100% available interior space.
  • Widely used for Weddings, Events, Parties, Celebrations,Sports,Tradeshow, Warehouse,etc.

2015 Beijing World Athletic Championships Liri DNPT

    5.Accessories of Small dome tent

  • Covers: colourful cover, transparent cover, inflatable roof cover
  • Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
  • Wooden Flooring System: VIP cassette flooring, simple cassette flooring
  • Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
  • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
  • Fixing Methods: ground anchors, weight plate, expandable bolts
  • Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
  • Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.

    6.FAQ about the Small dome tent

Q1:Can you print our logos on Small dome party tent ?

  • Yes,customized logos can be print on the tent fabric according to your requirements.

Q2:Is that factory price?

  • Yes,we assure you all prices are based on factory.

Q3:Does your tent be able to install repeatedly?

  • Our tents can be assembled and dismantled and repeatedly with small transportation size.The lifespan of aluminium framework can reach 15-20 years,and 5-8 years for PVC fabrics depending on different conditions of usage.

Q4:What documents are available?

  • A full range documents,including structural drawings,packing list,installation manual and relative certificates can be provided.Moreover,customs declaration is provided.This is an one-stop service for you.

Q5:What size tent is necessary for your special event?

  • A person must first determine tent usage. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person.If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.
