Giant Exhibition Hall Marquee for Outdoor Show from LIRI TENR Brand

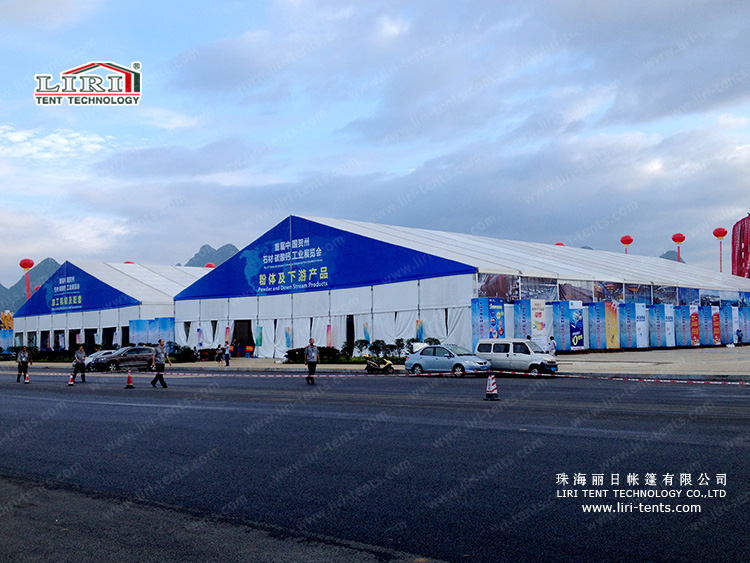

IMG_5025

Description of Exhibition Hall Marquee

Nowaday, more and more exhibition/trade show hold in the outdoor, such as car exhibition, furniture show, electronics show, art exhibition etc. which make the large temporary outdoor tents become popular.

LIRI TENT can provide large outdoor glass wall tents exhibition marquee. The inside space is 100% used, no poles are constructed inside the tent that makes the exhibition marquee very spacious and also provides an unobstructed view of the event.

Our glass wall tents have been used for many outdoor exhibition, The pictures above are the 40m widthExhibition Hall Marquee for the outdoor art show. We have many successful exhibition marquee tents case. As the exclusive tents supplier for the Canton Fair(China Import & Export Fair) since 2001, LIRI TENT has provided tents to this big event for almost 15 years.

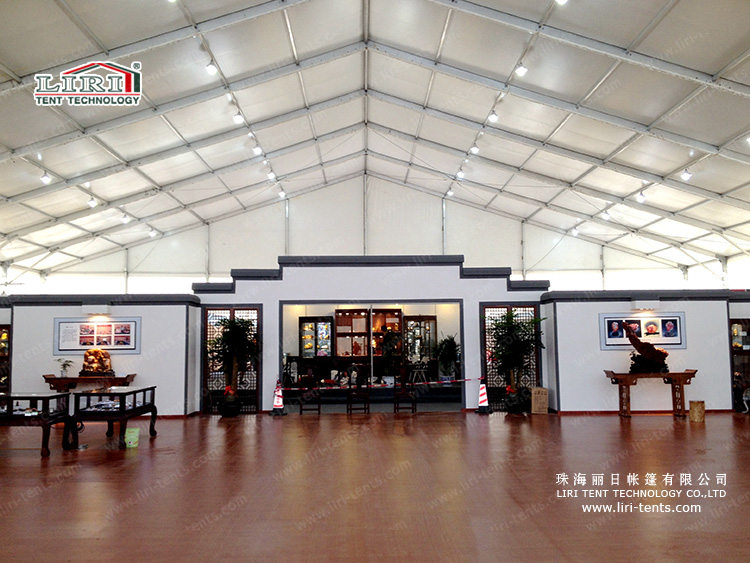

IMG_5035

Specifications of Exhibition Hall Marquee:

Model Span Width Bay Distance Eave Height Ridge Height Main Profile
EBT 20m 5m 4m 7.2m 256x121x5mm(4-channel)
EBT 25m 5m 4m 8.0m 256x121x5mm(4-channel)
EBT 30m 5m 4m 8.9m 256x121x5mm(4-channel)
TH 30m 5m 4m 8.9m 300x120x5mm(4-channel)
TH 40m 5m 4m 10.5m 300x120x5mm(4-channel)
The length can be extended by 5m bay such as 15m,20m,30m,40m…Customized size or shape is available.



  • Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.
  • Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
  • Connector: strong hot-dip galvanized steel
  • Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
  • Wind Loading: 100km/h (can be reinforced)
  • Snow Loading: 30kg/sqm (snow can’t stay if use big degree roof pitch design)
  • Easy to be assembled and dismantled, movable.
  • No pole inside, 100% available interior space.



Applications of Exhibition Hall Marquee:

Widely used for parties, weddings, events, celebrations, sports,exhibitions, trade shows, warehouse, Hajj, conferences, cafe shops, restaurants, corporate events, etc.

Accessories of Exhibition Hall Marquee:

  • Covers: colorful cover, transparent cover, inflatable roof cover
  • Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
  • Wooden Flooring System: VIP cassette flooring, simple cassette flooring
  • Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)
  • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
  • Fixing Methods: ground anchors, weight plate, expandable bolts
  • Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
  • Optional Items: table, chair, lighting, AC, carpet, installation tools, booth, mobile toilet, etc.

打印



Packing of  Exhibition Hall Marquee

  • Aluminum frame packed in membrane film
  • Hardware packed in solid carton box
  • Roof and sidewall in professional PVC carry bag
  • Customized packing is available
