Portable Frame Tent for Auto Exhibition

Commercial Portable Frame Tent for Auto Exhibition/Wine Festival

Provided by Liri Tent

Speaking of men’s romance, cars and wine are always and forever part of it. However, they are not something that you walk on the street and bomp into.

When there is such a chance, it should be taken tightly and never slipped away. Come and check the portable frame tent for car show and wine

Pagoda Tent(3m-6m)

Widely used for Weddings, Events, Parties, Celebrations,Sports,Tradeshow, Warehouse,etc.

Liri Tent for 2015 HongKong red wine festival (39)

Product Description

Specifications of the portable frame tent

Type Span Width Bay Distance Eave Height Ridge Height Mainprofile
PAG 3m/9.8′ 3m/9.8′ 2.5m 4.3m 65x65x2.5mm(4-channel)
PAG 4m/13′ 4m/13′ 2.5m 4.8m 65x65x2.5mm(4-channel)
PAG 5m/16.4′ 5m/16.4′ 2.5m 5.43m 65x65x2.5mm(4-channel)
PAG 6m/19.7′ 6m/19.7′ 2.5m 5.92m 65x65x2.5mm(4-channel)
PAG 8m/26.2′ 8m/26.2′ 2.6m 5.36m 122x68x3mm(4-channel)
PAG 10m/32.8′ 10m/32.8′ 2.6m 6.38m 122x68x3mm(4-channel)
Pagoda tent can be used as a single unit or combined by a rain gutter to make a  larger space and a special structure style.Customized size is available.

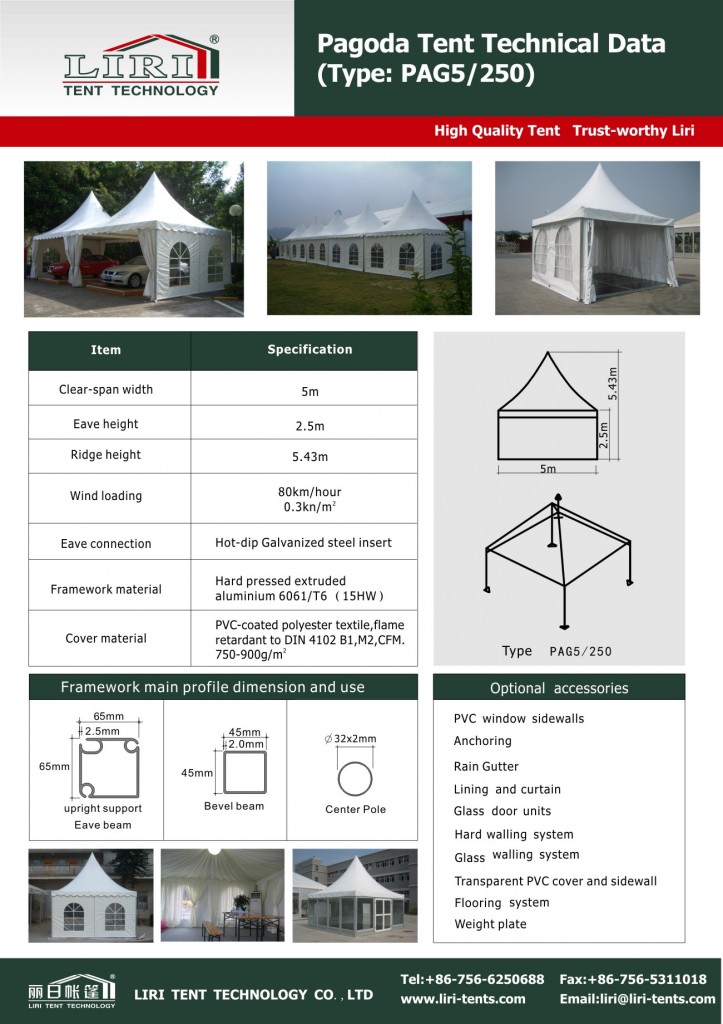

PAG5





Materials and features of the portable frame tent

  • Frame struss: hard pressed extruded aluminium 6061 /T6(15HW) which can last more than 20 years.
  • Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
  • Connector: strong hot-dip galvanized steel
  • Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
  • Wind load: max. 100km/h (can be reinforced)
  • Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
  • Easy to be assembled and dismantled, movable.
  • No pole inside, 100% available interior space.

Liri Tent for 2015 HongKong red wine festival (14)



Accessories for the portable frame tent

  • Covers: colourful cover, transparent cover, inflatable roof cover
  • Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
  • Wooden Flooring System: VIP cassette flooring, simple cassette flooring
  • Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
  • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
  • Fixing Methods: ground anchors, weight plate, expandable bolts
  • Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
  • Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.


Company Information

Liri Tent Technology (Zhuhai) Co., Ltd. Was established in 1997. Our company is the first professional manufacturer who introduced European advanced tents technology into our own design. Our main products include Modular Aluminium Alloy Structure Tents and Aluminium Alloy Square Pagoda & Summer Gazebo. We have been exporting tents to about 120 countries and regions all over the world and won great reputation worldwide including Europe,  USA, South Africa, and Australia etc.
We are very experienced in doing big international projects, like the 2010 Asian Games, 2014 China Open Tennis Tournament, 2002-2015 China Import and Export Fair, 2015 Europe PGA Golf event and 2015 Beijing World Athletic Championships etc..
