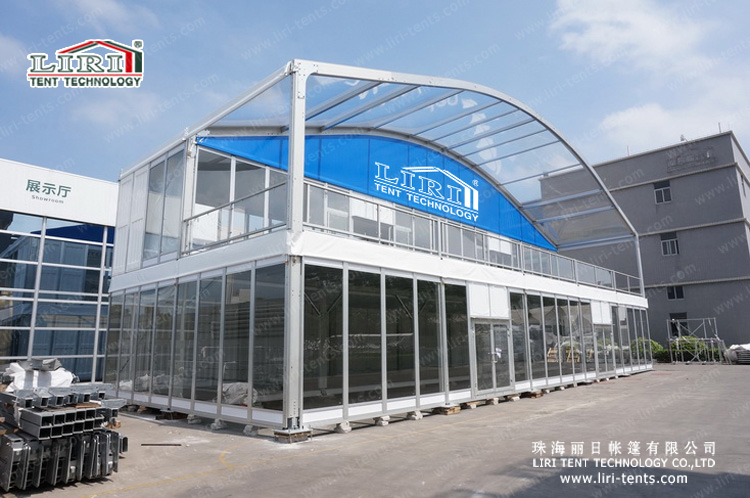

Two Storey Double Decker Tent with Glass Wall as Exhibition Show Tent

2

Product Description

Two Storey Double Decker Tent With Glass Wall As Exhibition Show Tent

1. Application:

The double decker structure can be widely used as the weddings, parties, exhibition, conferences, festivals celebrations, cafe shop, restaurants, corporate events, horse racing or other events, etc^

2. Specification for the double decker structure (DDS series):

For details, pls refer to below chart:

Main frame profile size for BT series: 300x125x5/8mm
Wind load: 100km/h
Minimum tent length: In order to reach the designed wind load and make sure the tent is safety, pls set up the tent with the required minimum tent length.

3. Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, lining, flooring system, clear PVC windows sidewalls, ramp, transport rack, indoor stairs & outdoor stairs etc

4. Materials:
Fabric: Double PVC coated polyester fabric, 750-900g/sq. M, water proof, UV resistance, fire retardant according to standard NFPA701, CFM & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Connections: Hot-DIP galvanized
Ceiling sub-construction: Wooden beams;
Upper flooring: 28mm water proof polywood

5. Color available: White, red, yellow, blue, green, black, grey, transparent etc

6. Products certificate:
Fabric: Test reports for the fire retardant, standards: NFPA701, CFM & DIN4102 B1/M2
Structure safety: Certificates by the registered engineers in the U. S. A & Australia.

If the customers need above certificates copy, pls feel free to contact with Liri Tent Technology. We will not show them on the website to avoid copys.

Model Clear span Length Bay Eave
height
First flooring height Ridge height Longest component Minimum tent length
DDS10/680 10.18m unlimited 5m 6.75m 3.21m 8.5m 6.46m 15m
DDS15/680 15.18m unlimited 5m 6.75m 3.21m 9.34m 6.46m 15m
DDS20/680 20.18m unlimited 5m 6.75m 3.21m 10.17m 6.46m 20m
DDS30/680 30.18m unlimited 5m 6.75m 3.21m 11.5m 6.46m 30m
DDS40/680 40.18m unlimited 5m 6.75m 3.21m 13.15m 6.46m 40m
