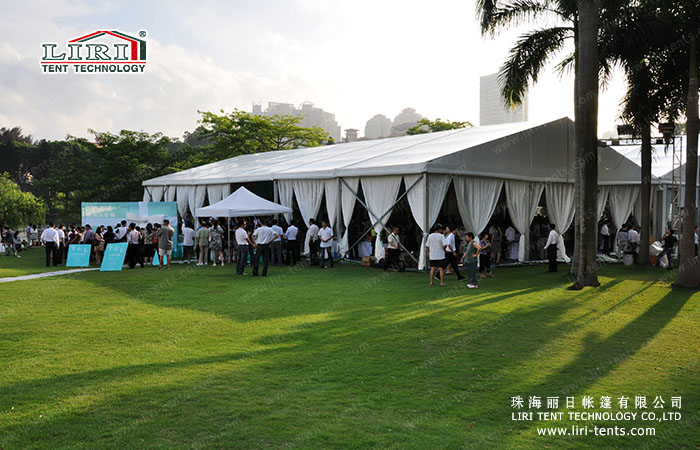

Introduction of 15m x 20m Marquee Tent
The clear span of the 15m x 20m Marquee Tent from Liri Tent Factory is from 10-60m. The main profile size is 204x120x4mm and the modular structure can be increased and decreased in bay distance of 5m according to the clients’ request. The main frameworks (upright support and roof beam) are manufactured of high impact extruded anodized aluminum (6061/T6). The PVC covers use PVC-coated polyester textile and flame retardance which is based on the European standard DIN 4102B1, M2.
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| BT | 10m/32.8′ | 5m/16.4′ | 3.88m | 5.53m | 204x120x4mm(4-channel) |
| BT | 12m/39.4′ | 5m/16.4′ | 3.88m | 5.83m | 204x120x4mm(4-channel) |
| BT | 15m/49.2′ | 5m/16.4′ | 3.88m | 6.3m | 204x120x4mm(4-channel) |
| BT | 20m/65.6′ | 5m/16.4′ | 3.88m | 7.1m | 204x120x4mm(4-channel) |
| BT | 21m/68.9′ | 5m/16.4′ | 3.88m | 7.25m | 204x120x4mm(4-channel) |
| BT | 25m/82′ | 5m/16.4′ | 3.88m | 7.88m | 204x120x4mm(4-channel) |
| The length can be extended by 5m bay such as 15m,20m,30m,40m…Customized size is available. |
There are also many different styles sand shapes like square, hexagonal, octagonal, decagonal, dodecagonal, and double decker. All clear span big ten structures are available with a complete range of accessories. These accessories include sidewalls with clear windows, ground anchors, weight plate, lining, glass wall system, ABS hard wall system, etc.
Optional Accessories of 15m x 20m Marquee Tent
- Covers: colorful cover, transparent cover, inflatable roof cover
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Packaging of 15m x 20m Marquee Tent
- aluminum frame packed in membrane film.
- hardware packed in a solid carton box.
- roof and sidewall in a professional PVC carry bag.
Certification of 15m x 20m Marquee Tent
- National High-tech Enterprises.
- ISO 9001:2008 Quality Control Standards.
- IFAI Certificate of Membership.
- American Rental Association Associate Membership.
- Practical Type Patent Certificate.
- Liri Tents Trade Mark Certificate.
