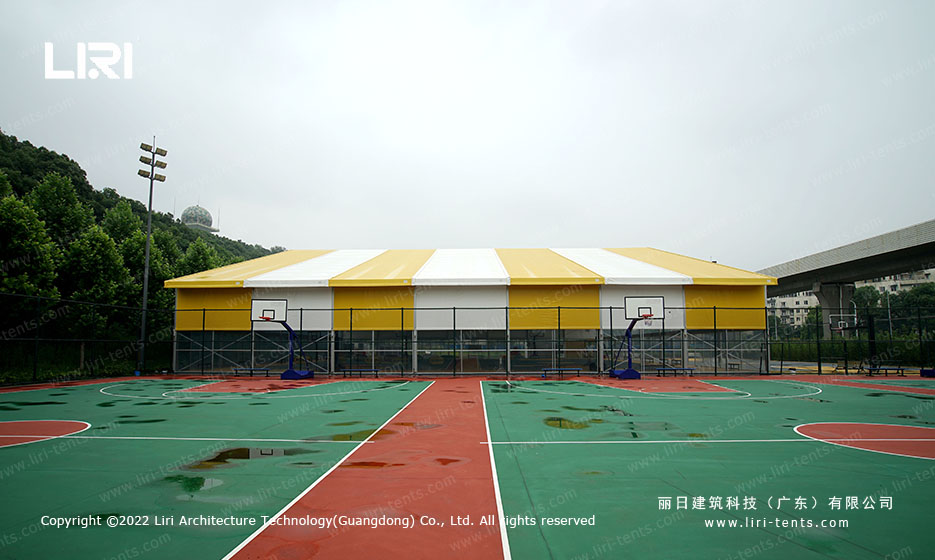

Outdoor Basketball Court Renovation Sports Marquee Tent

Many of the outdoor basketball courts are very poorly used due to prolonged exposure to the sun and rain. Not only do sports enthusiasts not have access to good sports facilities, but it is also a waste of public facilities. Therefore, more and more public basketball courts are being fitted with sports marquee tents.

Traditional stadiums and sports halls take years to plan, approve, lay the foundations, lay the foundation stone, and then start using. In the meantime, it requires a significant investment of money and manpower. As the sports marquee tent is a temporary structure, it does not require building approval and can be erected and used quickly. And, because it is mobile, it is also versatile. Examples include logistics unloading, factory aisles, factory warehouses, etc.

The basketball court sports marquee tent has a durable structure and is highly risk-resistant. It is surprising that no struts are required between clear span distances of 30-50m. This large-span temporary structure can be adapted to your site requirements.

Compared to traditional gymnasium buildings, the structural tent has many advantages in terms of fast installation, low cost, site flexibility, and easy expansion. In the service life of up to 10 years or more. It can almost cover the operating cycle of a professionally operated stadium.

Feature

  • Frame struts: hard pressed extruded aluminum 6061/T6(15HW)
  • Fabric cover: high quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear-resistant, self-cleaning ability, etc
  • Connector: strong hot-dip galvanized steel
  • Allowed temperature condition: -30 degree Celsius +70 degree Celsius
  • Wind load: max. 100km/h
  • Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
  • Easy to assemble and disassemble
  • No pole inside, 100% available interior space

Specification

Span WhidthEave HeightRidge HeightBay DistanceMain Profile
10m3.88m5.53m5m204x110x4mm (4 - channel)
12m3.88m5.83m5m204x110x4mm (4 - channel)
15m3.88m6.3m5m204x110x4mm (4 - channel)
20m3.88m7.1m5m204x110x4mm (4 - channel)
25m3.88m7.88m5m204x110x4mm (4 - channel)
