500 people banquet seating outdoor Clear Roof Tent for sale

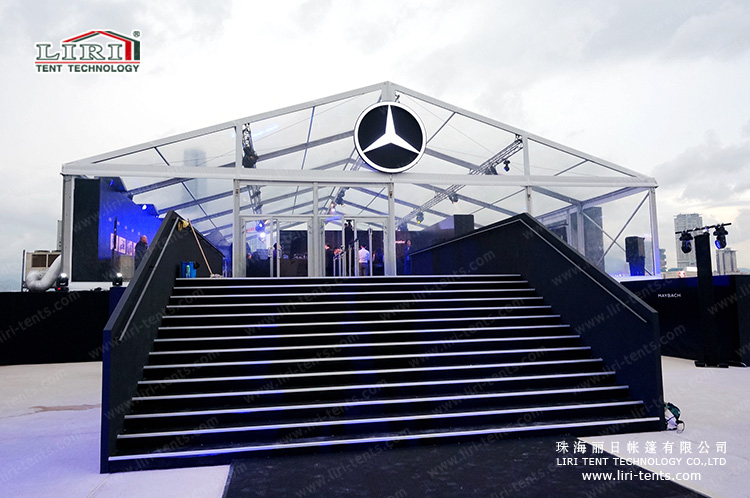

DSC02918

 Liri Event Tent Series:

Type Span Width Bay Distance Eave Height Ridge Height Main Profile
ET 8m/26.2′ 5m/16.4′ 3.3m 4.53m 152x119x3mm(4-channel)
ET 10m/32.8′ 5m/16.4′ 3.3m 4.85m 152x119x3mm(4-channel)
ET 12m/39.4′ 5m/16.4′ 3.3m 5.16m 152x119x3mm(4-channel)
ET 15m/49.2′ 5m/16.4′ 3.3m 5.62m 152x119x3mm(4-channel)
ET 16m/52.5′ 5m/16.4′ 3.3m 5.72m 152x119x3mm(4-channel)
ET 18m/59′ 5m/16.4′ 3.3m 6.01m 152x119x3mm(4-channel)
The length can be extended by 5m bay such as 15m,20m,30m,40m…Customized size or shape is available.
  • Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
  • Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
  • Connector: strong hot-dip galvanized steel
  • Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
  • Wind load: max. 100km/h (can be reinforced)
  • Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
  • Easy to be assembled and dismantled, movable.
  • No pole inside, 100% available interior space.









LIRI TENT Successful Cases:

  • Kinds of New Style Tent for China Open
  • Canton Fair Exhibition Hall
  • 2011 Universiade Official Tent Supplier
  • 2010 Asian Games Exclusive Tent Supplier&Sponsor
  • Dior Event in Hong Kong
  • China Grand  Rally Sponsor
  • Hong Kong Wine and Dine Festival
  • ……
