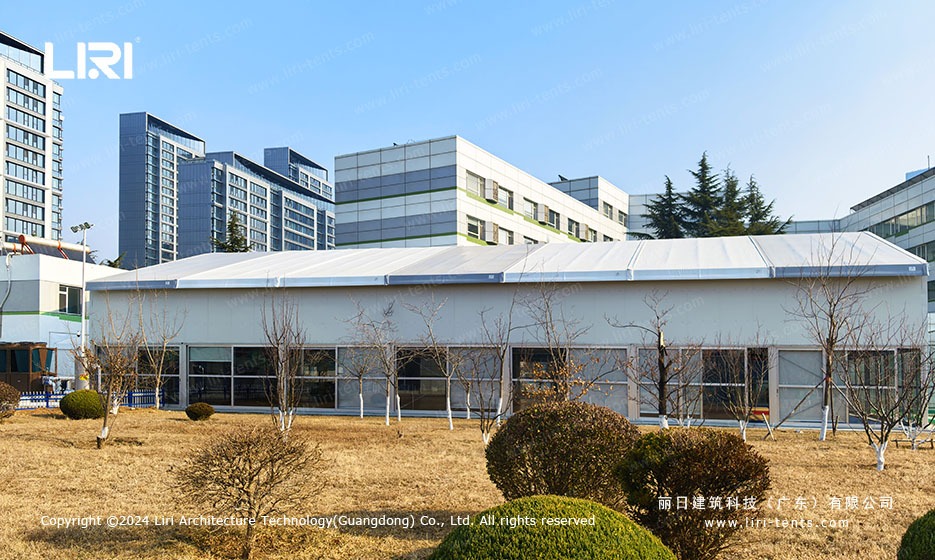

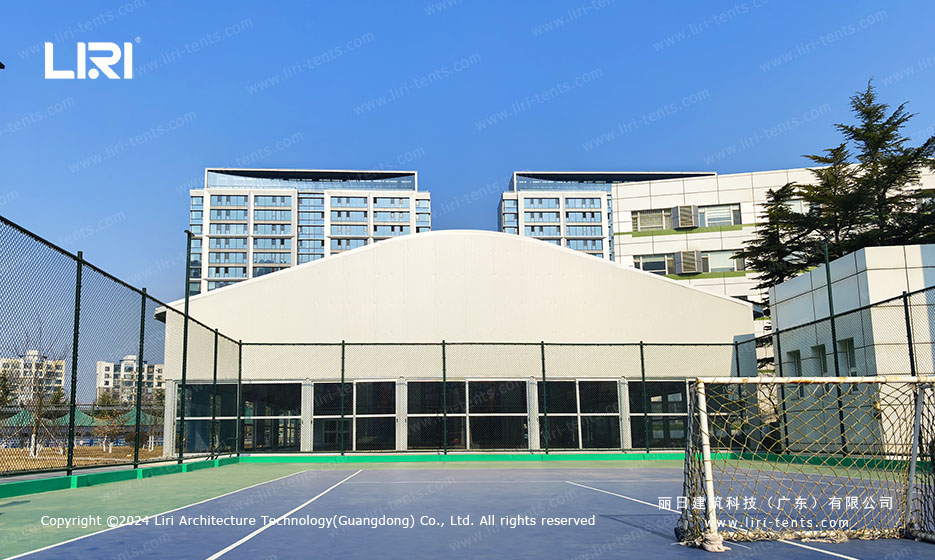

In land-scarce urban commercial complexes, traditional concrete sports facilities are often sidelined by lengthy construction timelines and complex permitting processes. This 22x35m (72ft x 115ft) curved roof sports marquee tent demonstrates the limitless possibilities of modular architecture.

It is far more than a temporary shelter; it is a high-specification athletic venue that blends transparent aesthetics with a professional-grade competitive experience.

---

Spatial Reinvention: A Boundless Professional Arena

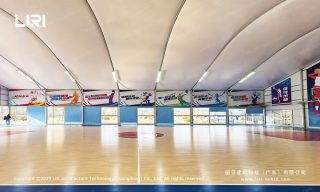

This project features a 22m (72ft) clear-span design, eliminating the need for internal support pillars. This ensures absolute safety and an unobstructed field of vision for basketball maneuvers, from corner three-pointers to full-court sprints. The 35m (115ft) length is precision-engineered to accommodate a standard basketball court along with dedicated peripheral functional zones.

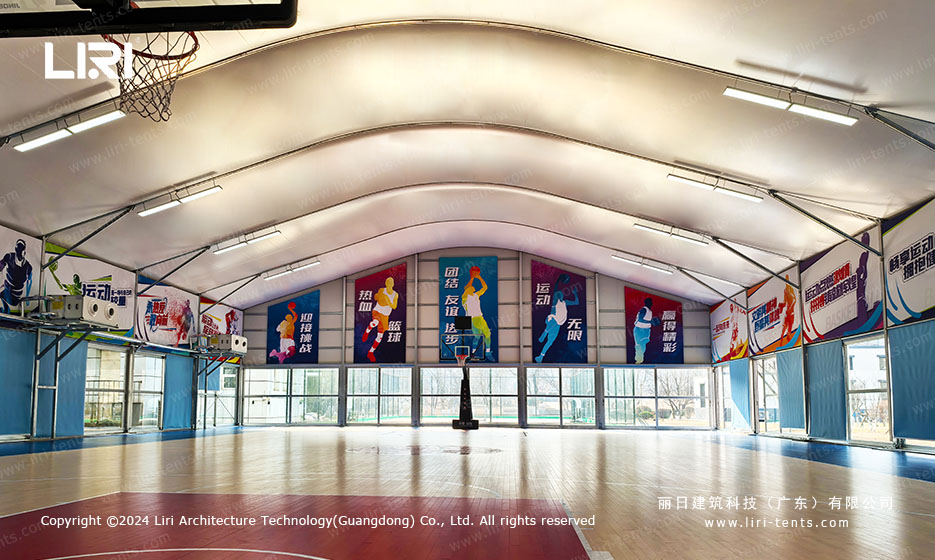

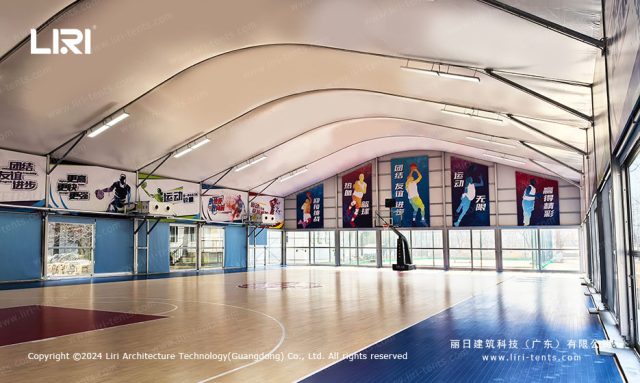

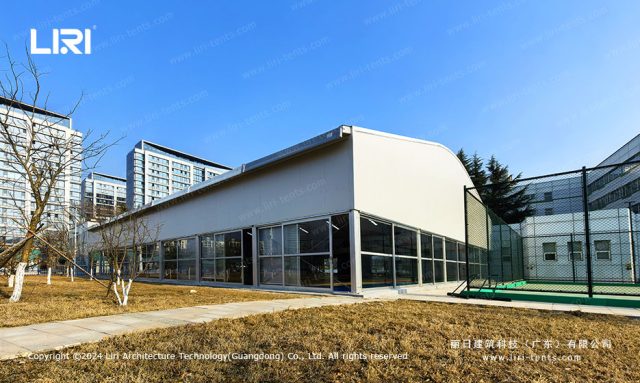

The unique Curvature Roof design does more than just break the monotony of conventional industrial structures; it effectively increases the interior vertical clearance. This curvature provides ample physical space for professional indoor sports lighting and advanced air circulation systems, ensuring a peak thermal environment even during high-intensity matches.

Technical Depth: Balancing Durability with Sensory Experience

As a premium sports marquee mall installation, the structural core utilizes high-strength extruded aluminum alloy (6061/T6). The surface is anodized for superior corrosion resistance, making it a permanent-grade solution for urban environments.

• Roofing Membrane: 850g/m² blackout PVC fabric provides 100% UV protection and flame retardancy.

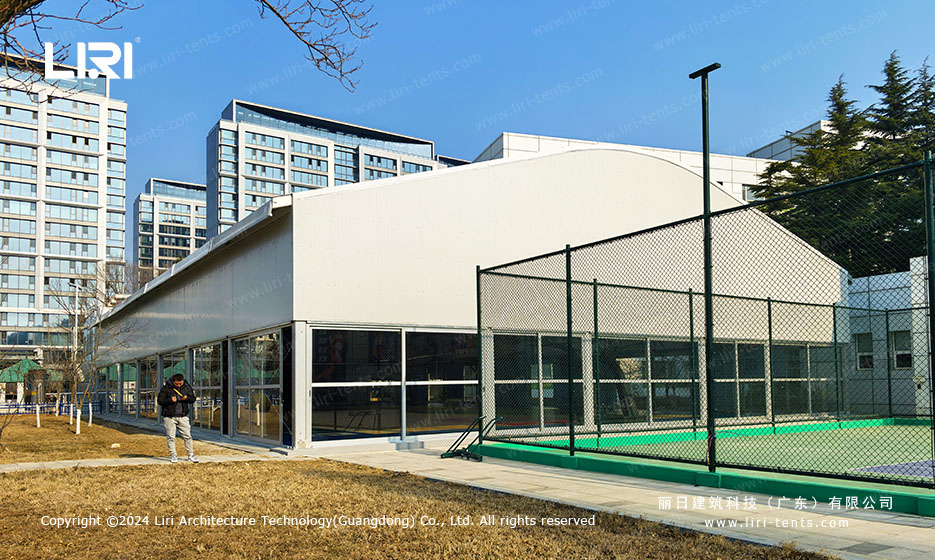

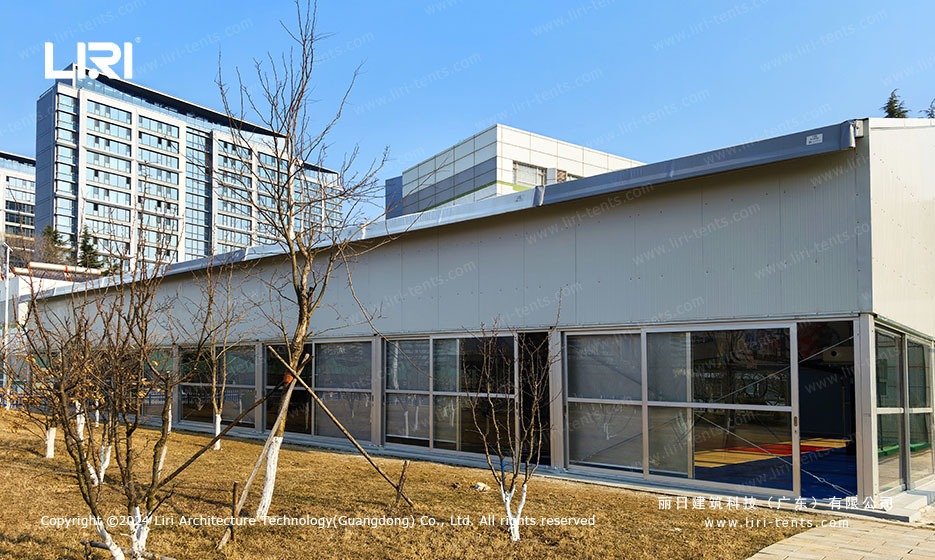

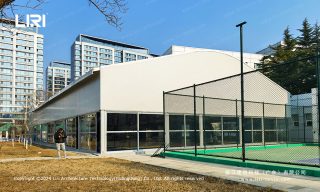

• Walling System: The integration of LOW-E tempered glass curtain walls is the project’s defining feature. It draws natural light into the interior, significantly reducing daytime lighting energy consumption while creating a modern visual synergy between the athletic intensity inside and the bustling commercial district outside.



---

Core Technical Specifications

Category	Metric	Imperial
Clear Span Width	22m	72ft
Length	35m	115ft
Frame Material	High-strength Aluminum 6061/T6	Hard Pressed Extruded Aluminum
Roof Material	850g/m² Double-sided Coated PVC	25 oz/sq yd PVC Fabric
Wall System	Tempered Glass + Sandwich Panels	Glass Walls + Insulated Panels
Wind Loading	100 km/h	62 mph

---

Expert Insights: Deep Dive into Modular Sports Facilities (FAQ)

Q1: Beyond aesthetics, what are the practical advantages of a Curved Roof in urban settings?

The Curvature Roof offers superior aerodynamic performance, effectively dispersing high wind pressure—a critical factor for structures placed in urban wind corridors. Furthermore, the curved surface facilitates the natural drainage of rainwater and snow, drastically reducing roof loading risks compared to flat designs.

Q2: How is the marquee secured on commercial mall surfaces without damaging the ground?

Since urban mall plazas often consist of concrete or tiles, we typically utilize a Weight Plate System. This non-invasive anchoring method provides stability without the need for drilling or foundation work, making it the most sought-after solution in the marquee for sale market for commercial developers.

Q3: What is the acoustic and thermal performance of the facility?

By installing thermal insulation layers within the PVC roof and utilizing double-glazed glass for the sides, we significantly enhance both sound dampening and thermal retention. When paired with high-capacity HVAC systems, the interior maintains a comfortable temperature of 22-26°C (72-79°F) even during peak summer heat.

---

Executive Summary

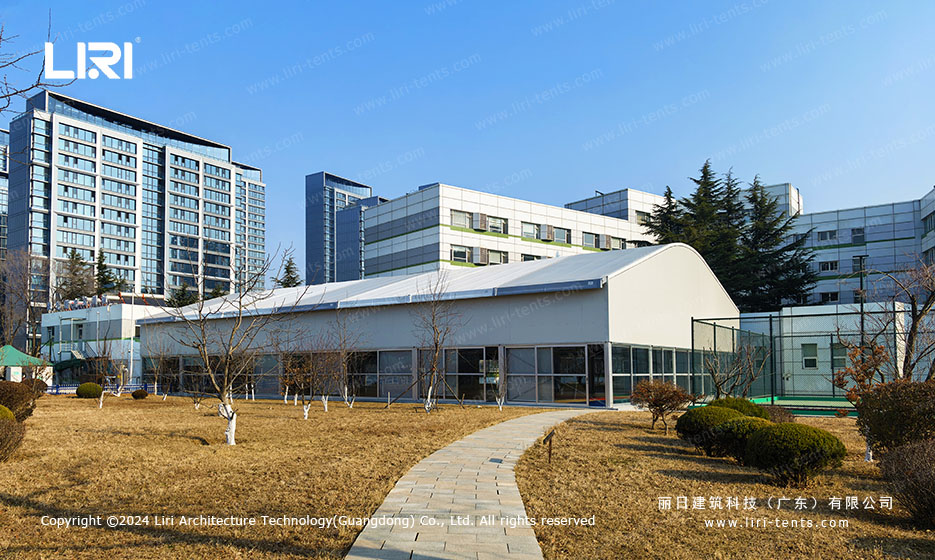

This project is not merely an evolution in architectural form; it is a profound strategy for maximizing “fragmented” urban space. By utilizing a 22x35m modular unit, we have successfully embedded a professional-grade basketball court into a complex commercial ecosystem.

With its rapid deployment cycle, exceptional weather resistance, and high-tier aesthetic value, this sports marquee tent is redefining the flexibility and future of modern urban sports infrastructure.
