Hard Wall Warehouse Marquee Tent

Warehouse Tent for Temporary or Permanent Usage

1. Specification of the Warehouse Marquee Tent

Type Span Width Bay Distance Eave Height Ridge Height Mainprofile
WSBT 5m/16.4′ 5m/16.4′ 4.2m 5.05m 204x120x4mm(4-channel)
WSBT 7.5m/24.6′ 5m/16.4′ 4.2m 5.46m 204x120x4mm(4-channel)
WSBT 10m/32.8′ 5m/16.4′ 4.2m 5.84m 204x120x4mm(4-channel)
WSBT 12m/39.4′ 5m/16.4′ 4.2m 6.16m 204x120x4mm(4-channel)
WSTH 20m/65.6′ 5m/16.4′ 5.2m 8.4m 300x120x5mm(4-channel)
WSTH 25m/82′ 5m/16.4′ 5.2m 9.2m 300x120x5mm(4-channel)
WSTH 30m/98.4′ 5m/16.4′ 5.2m 10m 350x120x5mm(4-channel)
The length can be extended by 5m bay such as 15m,20m,30m,40m…Customized size is available.

WS20-520

2. Materials and Features of the Warehouse Marquee Tent

  • Frame struss: hard pressed extruded aluminium 6061 /T6(15HW) which can last more than 20 years.
  • Fabric cover: high-quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
  • Connector: strong hot-dip galvanized steel
  • Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
  • Wind load: max. 100km/h (can be reinforced)
  • Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
  • Easy to be assembled and dismantled, movable.
  • No pole inside, 100% available interior space.

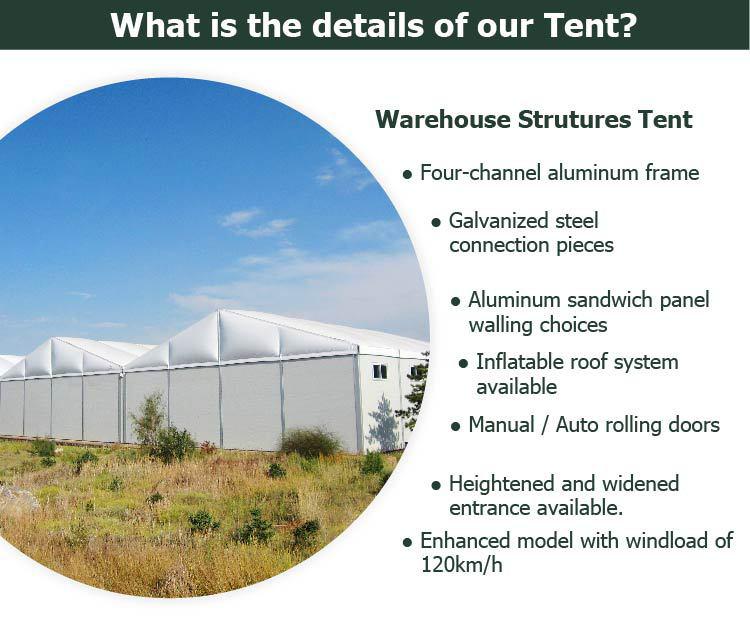

warehouse tent feature



3. Applications of the Warehousing Marquee Tent

DSC00452

  • Widely used for Weddings, Events, Parties, Celebrations,Sports,Tradeshow, Warehouse,etc.
  • In our factory we have been using this tent for our own since 2008. And it is still in good condition.

20x50m warehouse tent 5

4.Accessories of Marquee Tent For Warhouse

  • Covers: colourful cover, transparent cover, inflatable roof cover
  • Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
  • Wooden Flooring System: VIP cassette flooring, simple cassette flooring
  • Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
  • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
  • Fixing Methods: ground anchors, weight plate, expandable bolts
  • Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
  • Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.

Warehouse Marquee Tent does not require a permanent foundation, and can be built in almost any ground —- asphalt, concrete or grass, and so on withe the flexible fixing mathods. Thus you can move it any time you want.

fixing solutions

Tents in flexibility and economy is far superior than .the conventional steel structures, construction of buildings and do not have the required land permits trouble.Because of the basic conditions require less, cost is also low, so its maintenance is simple and inexpensive.

The most critical, Liri warehouse tents modular architecture design, integrated storage tents provide a good foundation, can according to your needs for industrial applications tailored architecture.
