Square High Peak Pagoda Supplier From China

If you are looking for a square high peak pagoda tent for a backyard garden in your house, for outdoor wedding party reception, a resting point in a sports event,  exhibition stand for a fair show,  the square high peak pagoda tent will be the best choice.

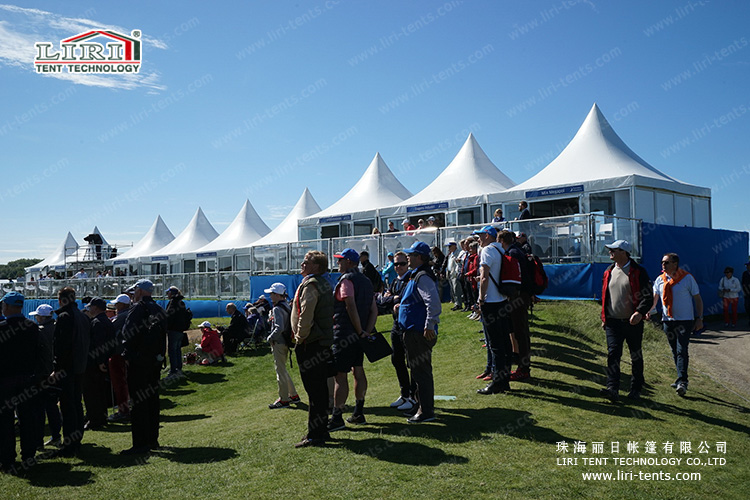

2015 Sweden PGA Golf Event PAG (8)

And for the square high peak pagoda tent, we can produce it from 3m to 10m wide. If they are not the ones you want, we also provide a customization service. So sizes will never be a problem.


Specification of the square high peak pagoda

Type Span Width Bay Distance Eave Height Ridge Height Main Profile
PAG 3m/9.8′ 3m/9.8′ 2.5m 4.3m  65x65x2.5mm(4-channel)
PAG 4m/13′ 4m/13′ 2.5m 4.8m 65x65x2.5mm(4-channel)
PAG 5m/16.4′ 5m/16.4′ 2.5m 5.43m 65x65x2.5mm(4-channel)
PAG 6m/19.7′ 6m/19.7′ 2.5m 5.92m 65x65x2.5mm(4-channel)
PAG 8m/26.2′ 8m/26.2′ 2.6m 5.36m 122x68x3mm(4-channel)
PAG 10m/32.8′ 10m/32.8′ 2.6m 6.38m 122x68x3mm(4-channel)
Pagoda tent can be used as a single unit or combined by a rain gutter to make a larger space or a special structure style. Customized size is available.

Done with sizes, comes the quality. And about that, you can have 100% confidence in us. As a professional tent manufacturing company, we only use the best material and provide the best quality product.


Materials of the square high peak pagoda

  • Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
  • Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning ability, etc.
  • Connector: strong hot-dip galvanized steel

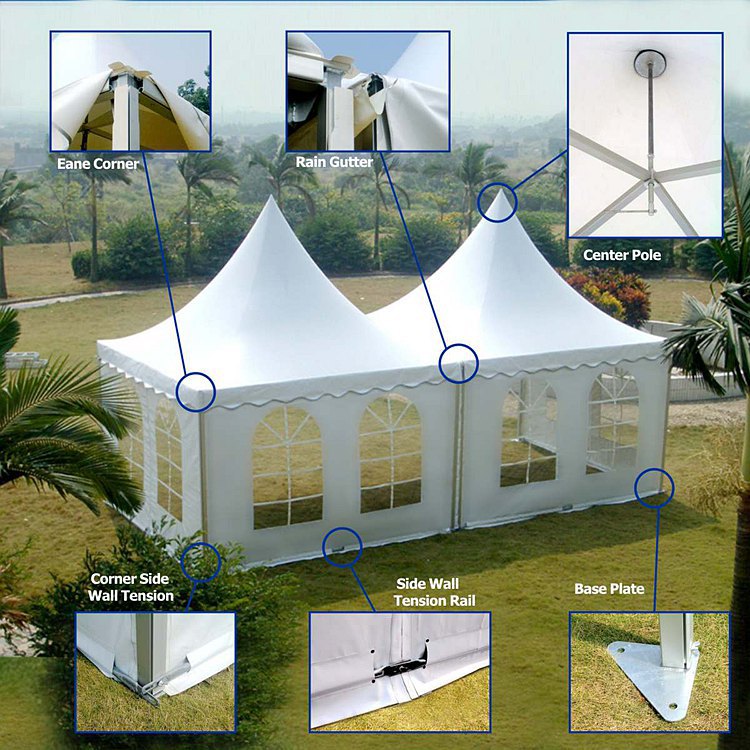

Material of PAG

  • Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
  • Wind load: max. 100km/h (can be reinforced)
  • Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
  • Easy to be assembled and dismantled, movable.
  • No pole inside, 100% available interior space.


Fixing solutions for the square high peak pagoda

After you get the square high peak pagoda, the last left is how to set it up on your event position. And about that, we also have it considered and covered for you. With the following fixing solutions, you can fix the tent safe and sound no matter it on soft ground like earth, lawn, or hard ground like asphalt and cement.

fixing solutions
