1000 People Transparent Marquee Tent

_0001s_0021_背景 副本 56

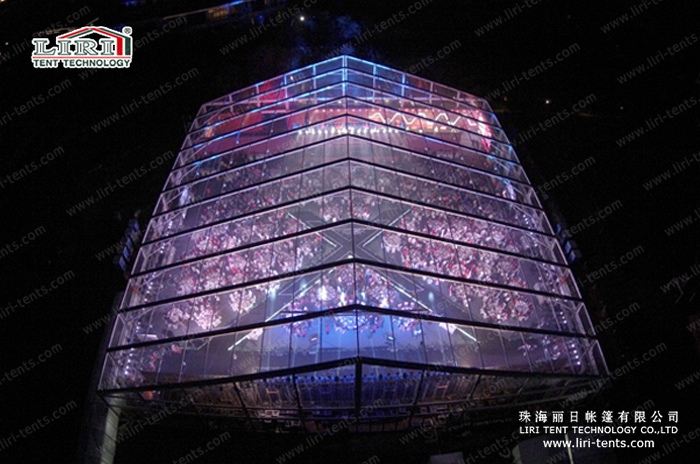

Presented to you is a transparent marquee tent with a span of 50m, which is used for the annual corporate anniversary celebrations. This is the largest transparent tent we have made so far, and can accommodate more than 1,000 people. This is a large transparent roof tent for the tent rental business.

It has been exported to many countries for local anniversary celebrations, wedding parties, exhibitions, car shows, motorsports events, sports games, and other large outdoor events. It is characterized by easy transportation and fast installation. You can rent it for a short period of time (three months) or for a long period of time (more than one year).


Main profile is 350x120x5mm, side height is 3.88m, and ridge height is 12m.3. Material
1) Frame struss: Hard pressed extruded aluminium 6061 /T6(15HW) which can last 15 to 25 years.
2) Fabric cover: High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
3) Connecter: Strong hot-DIP galvanized steel

Features & Specification

1) Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
2) Wind load: Max. 100km/h (can be reinforced)
3) Snow load: 75kg/sqm (snow can’t stay if use big degree roof design)
4) Easy to be assembled and dismantled, removeable
5) No pole inside, 100% room is available
6) Sizes can be customized(like side/leg height)

Optional accessories

1) covers: Colourful cover, transparent cover, inflatable roof cover
2) windows: Dome or square clear PVC windows, mesh window, glass window for glass wall
3) wooden flooring system: VIP, cassette, simple
4) doors: Double-swings glass door, single-swing glass door, glass fire door, hard PVC door
5) rolling door(automatic or manual)
6) sidewalls: Glass wall, PVC hard wall, sandwich panel wall, fiber glass wall
7) fixing methods: Ground anchors, weight plate, expandable screws
8) rain gutters (inner roof beam rain gutter or rain gutter between two tents)
9) lighting, AC, carpet, etc.

Type Span Width Bay Distance Eave Height Ridge Height Main Profile
LH 30m 5m 3.88m 8.9m 350x120x5mm(4-channel)
LH 40m 5m 3.88m 10.5m 350x120x5mm(4-channel)
LH 50m 5m 3.88m 12m 350x120x5mm(4-channel)
LH 60m 5m 3.88m 13.6m 350x120x5mm(4-channel)
The length can be extended by a 5m bay section such as 10m,15m,20m,30m…Customized size is available.
