Europe Arcum Tent for PGA Golf Event

Arcum Event Tent For Europe PGA Event In Sweden for Sale

(Provided by Liri Tent)

Do you want to buy one Aluminum Arcum Tent? Such as for wedding, churh, exhibition, new products show, church, event center.  if so, we have the perfect space solutions for you as below:

The arcum tent, which is Widely used as wedding marquee tent, event tent, party tent, festival tent, racing tent, sports tent, outdoor exhibition tent, tradeshow tent, warehouse tent, storage tent, outdoor activity marquee tent, and tent hire business, event design business, military solution, temporary warehouse and workshop etc.

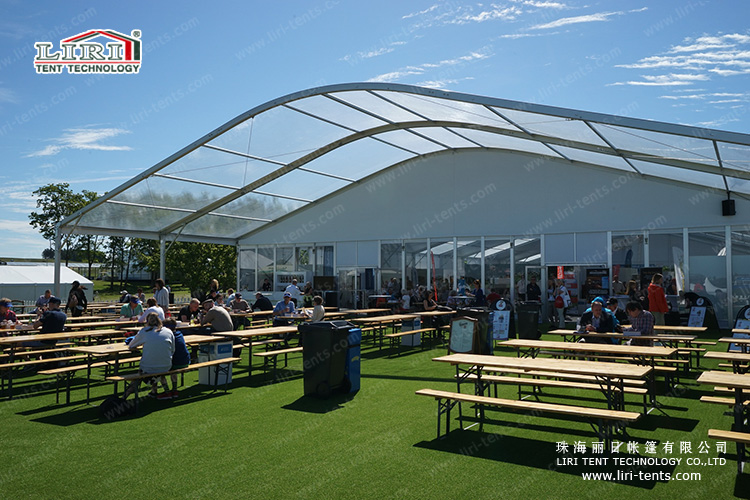

 2015 Sweden PGA Golf Event BT25M (8)



 1. Specifications of Our arcum event tent

Model Span Side height    Ridge height    Length of distance    Main profile
ABT10/400 10m    4m 5.60m    5m  204x120x4mm
ABT12/400 12m    4m 6.18m    5m  204x120x4mm
ABT15/400 15m    4m 6.40m    5m  204x120x4mm
ABT18/400 18m    4m 6.90m    5m  204x120x4mm
ABT20/400 20m    4m 7.20m    5m  204x120x4mm
ABT21/400 21m    4m 7.40m    5m  204x120x4mm
ABT25/400 25m    4m 8.00m    5m  204x120x4mm
ABT30/400 30m    4m 8.80m    5m  256x121x5mm
ABT40/400 40m    4m 10.4m    5m  300x120x5mm
ABT50/400 50m    4m 12.0m    5m  350x120x5mm



The length can be extended by 3m bay such as 3m,6m,9m,15m…Customized size is available.

 2015 Sweden PGA Golf Event BT25M (2)

2.Materials of Our arcum event tent

  • Frame struss: hard pressed extruded aluminium 6061 /T6(15HW) which can last more than 20 years.
  • Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
  • Connector: strong hot-dip galvanized steel

rBAAalO8HBGAJTtlAADzqUDoZ1E335



3.Features of Our arcum tent

  • Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
  • Wind load: max. 100km/h (can be reinforced)
  • Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
  • Easy to be assembled and dismantled, movable.
  • No pole inside, 100% available interior space.

UT8K1vDXfhXXXagOFbXG



4. Accessories of Our outdoor arcum Tent

  • Covers: colourful cover, transparent cover, inflatable roof cover
  • Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
  • Wooden Flooring System: VIP cassette flooring, simple cassette flooring
  • Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
  • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
  • Fixing Methods: ground anchors, weight plate, expandable bolts
  • Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
  • Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Arcum Tent
