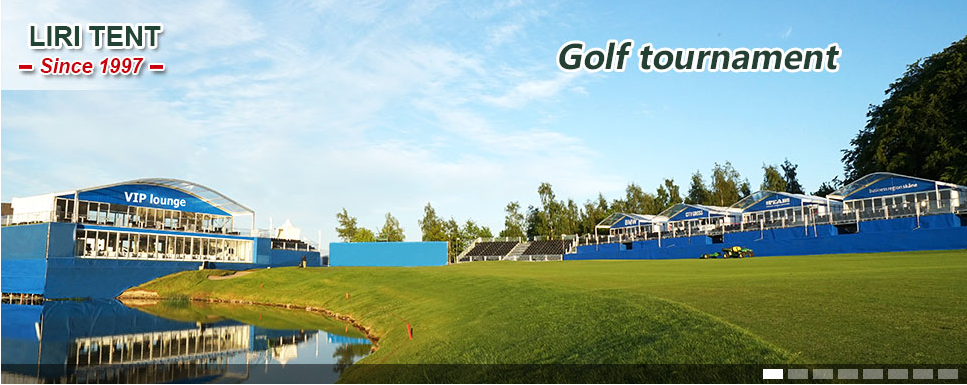

New Europe Event Marquee For Golf Tournament In Europe

Produced by Zhuhai Liri Tent Technology Co., Ltd

1. Specification of the Europe Event Marquee

The clear-span width  of the used party tent is 5m, 6m, 8m, 9m, 10m, 12m. however,  you could find other sizes of tents with width from 3m to 60m in our full series of  tent.

The length of the used party tent could be 10m, 15m, 20m, 25m, 30m and +3m more;

Used party tents— Party Tent Series
Model No.	Width (m)	Length(m)	Eave height (m)	Ridge height (m)	Bay distance (m)	Roof pitch	Longest component (m)

Wind loadAluminum main profileNPT 5m/26056m +3m more2.63.94322°4.78









80km/hour

0.3kn/sqm100x48x3mmNPT 6m/26066m +3m more2.64.12322°3.5NPT 8m/26086m +3m more2.64.58322°4.32NPT 9m/26096m +3m more2.64.68322°4.76NPT 10M/260106m +3m more2.65.12322°5.5NPT12m/260126m +3m more2.65.16322°3.2 General Package: 1. Aluminum Frame–membrane film 2.Hardware–solid carton box 3. Tent cover–PVC carry bag.Note: The longest parts determine the kinds of containers you use to transport the cargo.20 feet container: Inner size: 5.69×2.13×2.18m;  Usable Volume: 24-26CBM;  Allowed Weight: 17.5 ton40 feet container: Inner size: 11.8×2.13×2.18m;  Usable Volume: 54CBM;  Allowed Weight: 22 ton40 feet high cube container: Inner size: 11.8×2.13×2.72m;  Usable Volume: 68CBM;  Allowed Weight: 22 ton

2. Brief Introduction of Europe Event Marquee

—Liri Tent, the first,the biggest and most trust-worthy tent manufacturer in China, we have the biggest tent rental resources,  more than 500,000 square meters tents for rental, which means we have large stocks of second hand tents for sale

—Liri used tents apply advanced European technology, easy to set up and dismantle, 100% inside spaces can be utilized.

3. Application of Europe Event Marquee

This used tent structure can be widely used for weddings, parties, exhibition, sports, conferences, festivals celebrations, cafe shop, restaurants, cargo warehouse, corporate events, horse racing or other events and functions, etc.



4. Material of the Europe Event Marquee

    4.1 Aluminum Frame: 100% hard pressed extruded aluminium 6061 /T6 which can last 15 to 20 years.

    4.2 PVC Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof,

          flame retardant to DIN4102 B1, M2, CFM,  UV resistant, tear resistant, self-cleaning ability, etc.

    4.3 Steel Connecter: strong hot-dip galvanized steel, zinc thickness over 80um

5. Optional Fixing methods for the Europe Event Marquee

   5.1 Ground anchor(steel peg): For soft ground surface like, earth, sand, lawn, etc.
   5.2 Inflatable screw: For hard surface like, cement, stone, asphalt, or prefab concrete cubic, etc.
   5.3 Weight plate: For protective ground surface like marble, ceramic & tiles, asphalt, brick, etc.

6. Optional accessories for Event Marquee For Golf Tourmanet

  6.1 PVC covers: opaque cover, translucent cover, colourful cover, transparent cover, inflatable roof cover
  6.2 sidewalls: soft PVC wall, glass wall,PVC hard wall, sandwich wall, fiber glass wall, steel sheet wall
  6.3 windows: dome or square clear PVC windows, mesh window, glass window
  6.4 doors: double-swings glass door, single-swing glass door, glass fire door, hard PVC door, rolling door
  6.5 wooden flooring system
  6.6 rain gutters (inner roof beam rain gutter or rain gutter between two tents)
  6.7 roof lining, sidewall curtain, lighting, AC, carpet, etc.

7. How to visit Liri Tent (Only take 2 hours or less)

Usually you will flight to Guangzhou city, then:
7.1 You can take a taxi from the airport directly come to Liri Tent
7.2 You can take a coach bus at airport to Gongbei station, then take a bus or taxi to Liri Tent
7.3 You can go the Guangzhou travel bus station and take a coach bus directly come to Liri Tent
7.4 You can take a train from Guangzhou to Zhuhai, then take a bus or taxi to Liri Tent
7.5 If you flight to Hong Kong or Maco, you can take a ferry to come to Zhuhai, then take a bus or taxi to Liri Tent

 8.To view more tent models, pls visit Liri Tent as below:

9. For further details or formal quotation, pls feel free to contact with us.
