Transparent Marquee Tent for FIFA Fan Zone in Thailand: 20m Clear Span Build

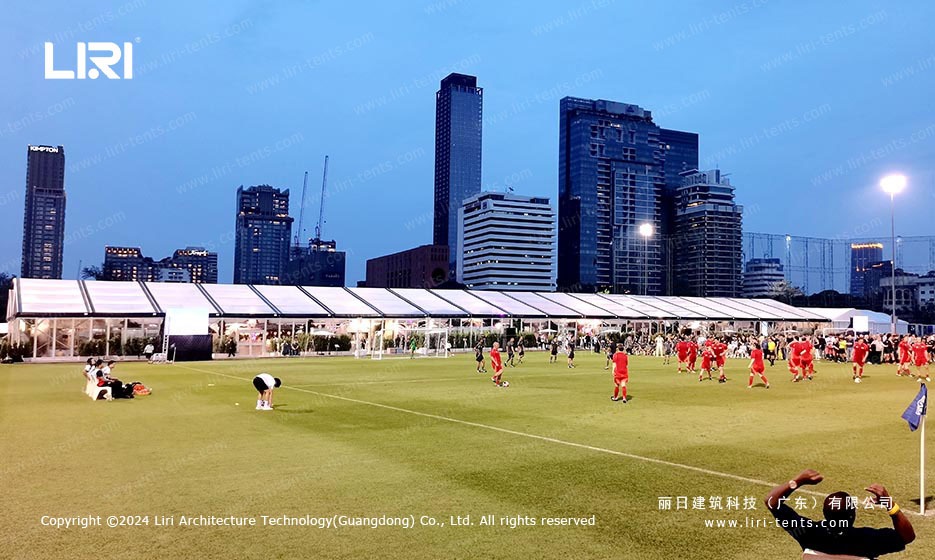

Transparent marquee tent at FIFA fan zone event in Thailand with 20m clear span

When a major football exhibition needed a temporary venue in Thailand, the organizers faced a stack of competing constraints.

The space had to host VIP guests, sponsor activations, and broadcast operations under one roof, all while withstanding the tropical afternoon downpours that arrive without warning during the monsoon shoulder season.

A conventional opaque structure would have killed the visual atmosphere the brand team wanted, and a small canopy could not accommodate the crowd flow expected across three days of fixtures. The brief called for natural daylight, clear sightlines to the pitch-side screen, and a column-free interior that would let camera cranes move freely.

The project team turned to a clear top marquee tents solution to bridge the gap between shelter and spectacle.

A 20-Meter Clear Span Marquee Built for the Brief

The chosen structure was a 20-meter clear span marquee, assembled from marine-grade aluminum alloy uprights and a 650gsm translucent PVC fabric shell.

The roof followed an arcum curve, which sheds monsoon rain faster than a flat A-frame and reduces wind loading on the sidewalls by channeling airflow over the apex. With no internal columns, the full 20 by 30 meter footprint was available for seating banks, stage, and camera risers.

The frame weighed under 4.2 tonnes, which meant it could be lifted onto the venue pad with a single mobile crane. This clear span marquee tents configuration has become the default choice for high-profile outdoor activations across Southeast Asia because it ships in standard containers and reuses the same frame for multiple events.

Clear span marquee tent interior with natural daylight at Thailand fan zone venue

Engineering drawings specified a wind resistance of 100 km/h once the sidewalls were anchored, and the PVC membrane carried an M2 flame-retardant certification accepted by Thai venue authorities.

The 20-meter clear span allowed two camera cranes to operate side by side without repositioning, and the translucent roof panels reduced artificial lighting load by 40 percent during daytime sessions. Each aluminum beam was pre-fabricated at the factory, so the entire frame bolted together on site in under 14 hours.

The sidewalls combined solid PVC for the lower 2 meters with clear glazing above, balancing privacy for VIP seating with daylight penetration for sponsor branding visibility. For comparable modular builds, the modular marquee tent assembly reference covers span options from 10 to 50 meters.

Arcum roof marquee structure detail showing aluminum beam connections and PVC tensioning

Installation Results On Site in Thailand

A crew of eight technicians completed the build across two shifts, finishing ahead of schedule despite intermittent showers that delayed the crane lift by 90 minutes.

The transparent PVC roof panels were the last element to be tensioned, and once they locked into the kedar tracks, the interior transformed into a naturally lit hall with clear sightlines to the pitch-side screen.

The outdoor event marquee structure for sale held firm through a tropical storm on the second evening, with no water ingress reported at the seam lines. Anchor bolts were re-torqued the following morning, and a visual inspection confirmed the frame showed no deflection under sustained wind gusts.

FIFA fan zone marquee tent exterior with full 20m clear span structure in Thailand

Guest feedback collected after the closing fixture highlighted the open, airy atmosphere of the transparent canopy, with several corporate partners requesting similar setups for their own regional activations.

Crowd flow through the 4-meter double-leaf doors stayed smooth even at peak entry times, and the modular design meant the venue could be extended by another bay if attendance exceeded projections. The host broadcaster praised the natural light quality, which reduced the need for follow-spot rigging and improved color rendering on the main feed.

Operators looking at weather-hardened variants can review the heavy duty commercial marquee framework used for sustained tropical deployments.

Event marquee crowd entry showing double-leaf doors and 4m clearance at fan zone

Common Questions About Transparent Marquee Structures

How long does it take to install a 20m transparent marquee?
A trained crew of eight can complete the foundation, frame, and roof in 12 to 16 hours for a 20 by 30 meter footprint. Sidewalls, doors, and finishing details take an additional 4 to 6 hours. Site conditions and crane availability are the main variables that shift the timeline.

Can a transparent marquee withstand tropical storms?
Yes, when anchored to specification, the structure resists wind up to 100 km/h. The arcum roof profile accelerates rain runoff, and heat-welded PVC seams keep the interior dry during sustained downpours. For venues exposed to higher wind loads, engineers specify additional rafter bracing and ground anchors.

Is the transparent PVC roof suitable for daytime broadcast events?
The translucent membrane diffuses direct sunlight, reducing harsh shadows while maintaining a bright interior. Most productions cut artificial lighting by 30 to 50 percent during daylight hours, which lowers generator fuel consumption and simplifies color balance on camera.

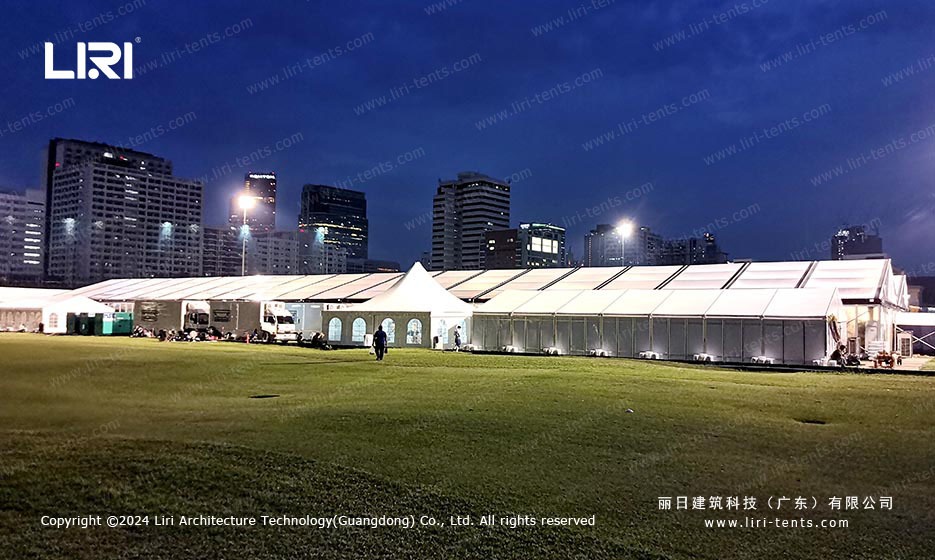

Outdoor event marquee tent at Thailand venue with clear span structure and arcum roof

If your next activation needs a transparent marquee tent that pairs broadcast-ready daylight with monsoon-grade weather protection, talk to a supplier who has shipped aluminum frame marquee structures across Southeast Asia.

Pair the build with an arcum roof marquee structures add-on for registration or VIP zones, and you get a modular venue that scales with the crowd. Custom spans from 10 to 50 meters are available, with optional glass sidewalls, raised flooring, and climate control for year-round use.
