The 500 people TFS curve tent offers a practical covered space solution for medium-to-large gatherings that need a distinctive curved roof profile. Built on the same modular aluminum frame as the standard TFS series, this size configuration accommodates banquet seating, conference layouts, or tiered audience arrangements. This article covers the specifications, setup requirements, and event applications of the 500-person TFS curve tent for indoor-equivalent event production.

TFS Curve Tent Structural Specifications

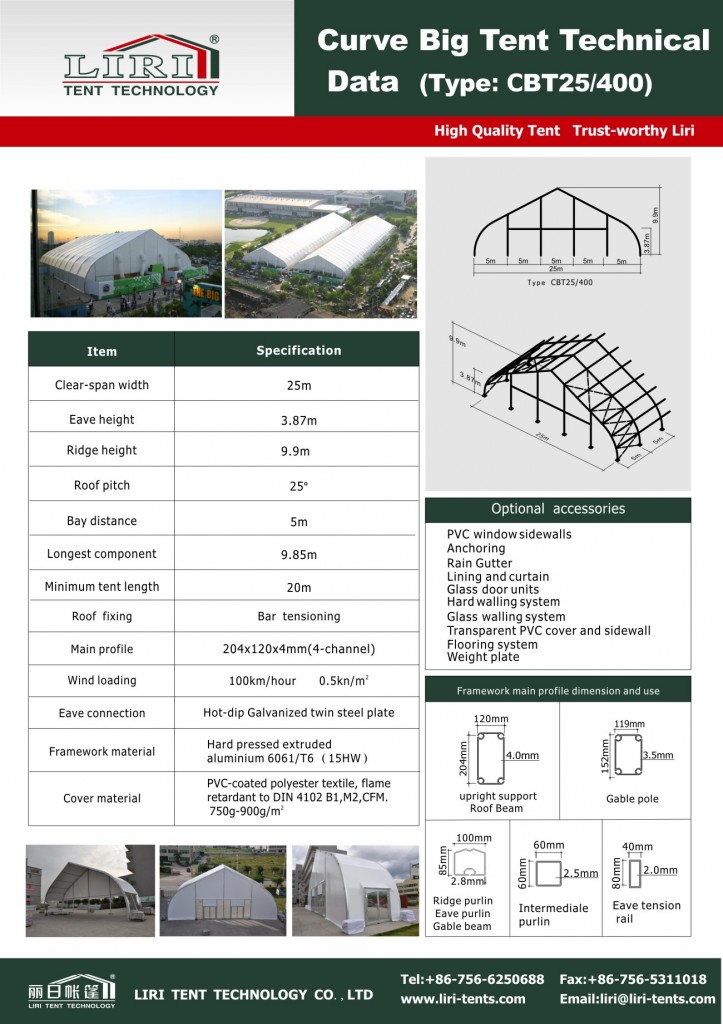

The TFS curve tent uses extruded anodized aluminum 6061/T6 for the main framework and double-sided PVC-coated polyester fabric rated to DIN 4102B1, M2 fire standards. The series includes three models: CBT (15m to 25m span, 204x120x4mm profile), CEBT (15m to 30m span, 256x121x5mm profile), and CTH (20m to 40m span, 300x125x5/8mm profile). The modular bay system allows length adjustments in 5m increments, giving organizers control over the total capacity and the overall footprint based on venue dimensions.

A 20m x 30m CEBT configuration seats approximately 500 guests in banquet rounds, with additional space for a stage, dance floor, and buffet stations. For planners comparing the TFS with A-frame alternatives, the foundation ceremony marquee demonstrates an equivalent straight-roof configuration with the same seating capacity and modular frame construction.

Wind Load Performance and Structural Durability

The TFS curve tent design carries a wind load rating of 100 kg/m², which translates to roughly 100 km/hr wind resistance with standard anchoring. The curved profile distributes wind pressure across the arch, reducing stress concentration on individual frame joints. The high-beam aluminum alloy construction resists corrosion better than steel frames, extending the tent’s service life in coastal or humid environments. The standard PVC fabric carries a 15-year warranty against UV degradation.

The same engineering principles behind the curve tent apply to sports marquee structures for basketball courts, where long-span clear space and wind resistance are equally critical. Optional wind bracing kits and additional anchor points are available for sites exposed to seasonal storms.

Setup Efficiency and Portability

The TFS curve tent uses bolted aluminum connections that require no welding or heavy equipment on site. A crew of six to eight workers can erect a 500-person configuration in two to three days. The modular frame disassembles into compact bundles that fit standard shipping containers, making it suitable for rental fleets and mobile event operators. The tent can be installed on grass, asphalt, compacted gravel, or concrete using ground anchors or ballast plates depending on surface conditions.

For event hire companies looking to expand their inventory, the retractable sports marquee series shows how the same modular frame system can be adapted for different event types with minimal component changes. The all-terrain event marquee anchoring system is compatible with the TFS frame for sites with soft or sandy soil.

What is the minimum size for a 500-person TFS curve tent?
A clear span of 20m x 30m accommodates 500 guests in banquet rounds with a stage and catering area. If tiered theater seating is used, a 20m x 25m footprint is sufficient. Dimensions can be adjusted in 5m bay increments.

Does the curve tent roof require special maintenance during rental?
No. The PVC fabric is pre-stretched and sealed at the factory. The curved profile prevents water ponding, and the UV-resistant coating requires no additional treatment during the rental period. Periodic cleaning with mild soap and water is sufficient.

Can the TFS tent be combined with other marquee models?
Yes. The TFS frame uses standard connector brackets that are compatible with straight-roof A-frame tents. A common layout combines a TFS main hall for dining with a straight-roof annex for kitchen or registration areas.

What is the delivery lead time for a 500-person TFS tent?
Standard production takes 20–30 working days from deposit confirmation. Express production is available for an additional fee, reducing lead time to 10–15 working days for standard span sizes.
