A high quality sport tent for playground cover has to protect athletes from sun and rain while leaving the play area open enough for ball sports. The polygon tent series does this with clear spans from 10m to 60m, a reinforced aluminum frame, and an 850g/sqm PVC fabric that blocks water and UV. A polygon sports tent for games shows the same roof style in a dedicated game hall configuration.

Polygon Series Span Range and Frame Specs

Standard spans run 10m, 12m, 15m, 18m, 20m, 25m, 30m, 40m, 50m, and 60m, with side height of 5m on the 40m and larger units. Bay distance is 5m, and the length increases or decreases in 5m steps without limit, so the hall matches the playground rather than the other way around.

The frame uses reinforced aluminum alloy 6061/T6 extruded profiles with anodized surface finish. The fabric is double PVC coated polyester at 850g/sqm, block-out, waterproof, UV resistant, fire retardant, and self-cleaning under European Standard M2. Wind resistance is rated at 100-120km/h, which is why the polygon design is a common choice for large concerts, storage, exhibitions, and big parties.

The polygon roof sheds snow faster than shallow curves, and the straight roof planes give the interior a clean, modern look. For playground sites that host multiple disciplines, arc roof marquee for city venues covers the alternative roofline with similar wind performance.

Choosing the Right Span for a Playground

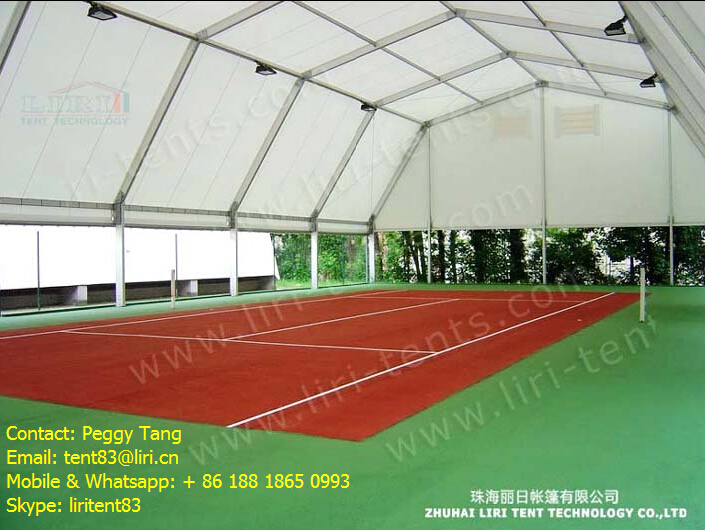

Playground projects usually start from the sport played: tennis needs a 20m plus envelope for court plus run-off, basketball works from 15m, and multi-use community halls often spec 25m to 30m to cover several activities. The 5m bay system lets schools and sports operators extend later without discarding the frame.

Height is a second decision point, because volleyball, badminton, and indoor training all benefit from the higher ridge the polygon profile provides. A 25m polygon unit with a 9.42m ridge gives enough clearance for lighting rigs and video screens. high peak polygon marquee for events documents the same profile serving a completely different program, which confirms how flexible the frame family is.

Accessories, Site Prep and Delivery

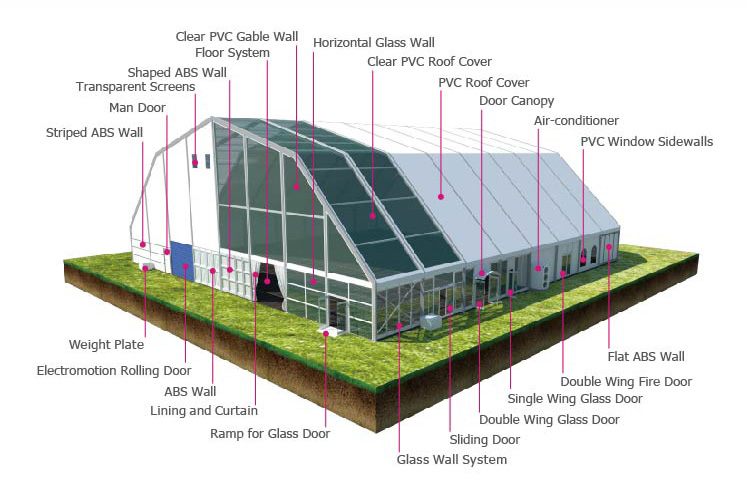

Accessories include clear-window sidewalls, mesh walls, glass walls, ABS hard panels, cassette flooring, and double-wing doors. Ground anchors, weight plates, and expandable bolts cover the fixing methods, and rain gutters can run between the inner roof beams on long halls.

Site prep is mainly a level pad or concrete slab, because the frame sits on base plates and can be anchored or ballasted to match local codes. Assembly is bolt-together without welding, and every part ships labeled with the installation drawings. A sports court canopy for outdoor play shows how the same delivery package adapts to a lighter seasonal facility.

Frequently Asked Questions

What does a high quality sport tent for playground cover include?

A complete order covers the anodized aluminum frame, 850g/sqm double PVC coated fabric for roof and sidewalls, and all connectors and hardware. Doors, glass walls, flooring, and gutters are quoted separately so the buyer only pays for what the site needs.

How wide can a polygon sports tent span?

The polygon series reaches 60m in standard production, with side height of 5m on the largest units. Length extends in 5m bays to any practical size, and heavier 300x120x5mm or 400x120x7mm profiles are used at 40m and above.

Which sports fit inside a polygon playground tent?

Tennis, basketball, badminton, volleyball, futsal, and training camps all work because the interior is column-free. The flat roof planes also accept scoreboards and sponsor banners without the distortion you get on curved covers.

How does the polygon roof handle wind and snow loads?

Wind resistance is rated at 100-120km/h, and the steeper pitches shed snow quickly, which keeps roof loading low in cold climates. Reinforcement options exist for exposed sites, and the anchoring method is selected against the local wind code. A custom TFS marquee for basketball hall shows how the frame family scales up when a client needs a bigger footprint.
